World's
Smallest GPS Data Recorder
|
PHYSICAL CONSTRUCTION |
PERFORMANCE |
||
Dimension: |
42 (W) x 63 (L) x 27.5 (H) mm |
Antenna element: |
High-reliability ceramic patch |
Weight: |
80 grams (+ 5% ~ 10% or 10 ~ 20 grams) without cable |
Antenna LNA: |
Gain: 23+/-2dB, NF: 2.0 max. |
Sensitivity |
-159 dbm |
||
Receiving frequency: |
1575.42MHZ, C/A code |
Receiver architecture: |
20 parallel channels |
Enclosure: |
Corrosion-proof & polycarbonate resin |
Reacquisition time: |
0.1 sec. average |
LED Indicators: |
Red (power) |
Position accuracy: |
10m 2D RMS and 5m 2D RMS with WAAS enable |
Green (GPS & logging) |
Velocity accuracy: |
0.1 Knot RMS steady state |
|
Flash Memory Size: |
8 megabytes |
Update rate: |
1 sec. continuous |
Charging Indicator: |
Red lights on when charging |
Operation time |
15 hours in continuous use after batteries are fully charged in power saving mode |
ENVIRONMENTAL CONDITIONS |
Dynamics: |
Up to 50m/s.s. (Tracking sustained) |
|
Temperature: |
Operating:
-30 ? ~ +75 ? |
Power supply: |
USB @ 5V, with reverse protection |
Humidity: |
95% RH non-condensing |
Current Consumption |
100mA @ 4V |
COMMUNICATION |
Power Consumption: |
0.4Watt max. |
|
Protocol: |
NMEA 0183 at 4800 Baud rates |
EMI filter: |
Rejects power line interference |
Signal level: |
USB
Interface (standard) |
GPS INTERFACE CAPABILITY |
|
DATA CABLE (Mini USB -> USB with +5.0V Input) |
Output Protocol: |
NMEA 0183 Sentences |
|
Length: |
90 cm (standard) |
Default output sentences |
RMC, GGA |
Description: |
|
||
Adjustable output sentences |
GLL, GSA, GSV, VTG and ZDA |
||
|
|||
Cigar Adaptor Cable (+12V -> +5V) |
Default Logger Interval: |
RMC:
60 sec. (log when GPS is fixed) |
|
Length: |
30cm (standard) |
Built-in Logger Functions: |
Available |
Description: |
Cigar adaptor converts 12.0V DC to 5.0V DC and supply power to device. |
Logging Data Interval Programmability: |
Available |
The MicroDot GPS Datalogger is so small, all you need is a small length of velcro tape to stick-it anywhere in a boat, car, plane, box or package. You can also obtain in with the Slap-It And Track-it tiny magnetic mount box.
World's
Smallest GPS Data Recorder
The GPS Data Recorder MicroDot Squared
MSRP: $295.00 Your Cost $279.00
World's
Smallest GPS Data Recorder
The GPS Data Recorder MicroDot Squared

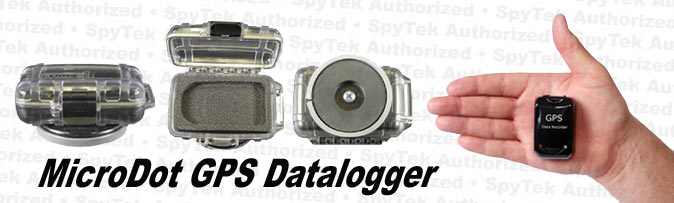

With Magnetic Mount Slap-N-Track Water Proof Box
MSRP: $395.00 Your Cost $329.00
